38" overhang cantilever mobile ladder with safety angle, 9 steps 38" overhang cantilever mobile ladder with safety angle, 9 steps

Model # CW-249

• 90" platform height
• Overall dimensions: 125" length x 39" wide x 133" high
• Clearance under platform: 88" high x 35.5" deep
• Guards 42" high
• 28" steps width
• 57" deep platform
• Non-slip steps 9-1/2'' deep
• Cantilever design allows access to hard-to-reach areas
• Safe tilt angle of 50°, allows user to face forward while descending
• Perfect for handling bulky items
• Robust, fully welded construction
• 400 lbs capacity
• 6" wheels, two rigid and two swivel with brake
• Durable blue powder coated finish
• Counterweight included
• Weight of 671 lbs
• Assembly required
• Complies with ANSI 14.7 and OSHA 1910.29 standards
• Product made in Canada

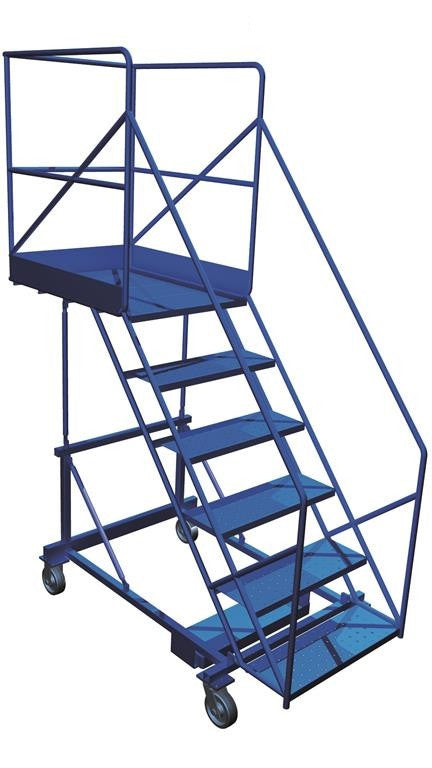

6-step model illustrated

Available options:
- Front or side access with safety chain
