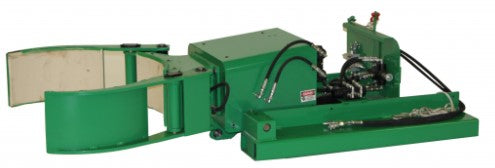

Self-Powered Hydraulic Clamp Lift and Tilt Self-Powered Hydraulic Clamp Lift and Tilt

Model #VC-018

• Capacity of 2000 lbs.
• Fork lift attachment features hydraulic clamping and 120-degree forward tilting capabilities, with a single set of hydraulic jaws
• This Lift Truck Powered unit makes it easy for the operator to move and pour most steel, plastic, and fiber drums (18-28″ in diameter)
• Fork pocket dimensions: 6-1/2W x 1-3/4"H x 37-1/2L
• Fork pocket centers: 26"
• Jaw size: 9" x 15"
• Overall dimensions: 67"L x 33"W x 19"H
• The clamp/unclamp feature is accomplished via a rope pull activation of the selector valve
• Unit requires lift truck be equipped with auxiliary valve control and hydraulic quick couplers for operation
• Constructed of all-welded, heavy gauge steel
• Product weight: 596 lbs
