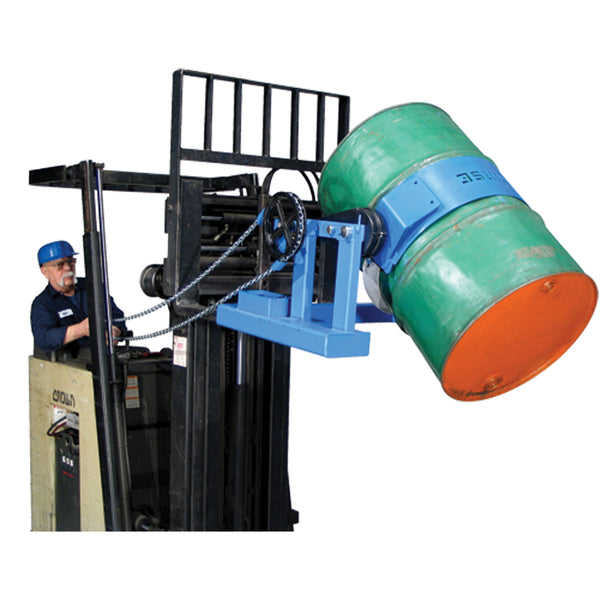

Fork mounted drum lifter, 2000 lbs capacity Fork mounted drum lifter, 2000 lbs capacity

Model # KE-310

• 2000 lbs capacity for full drum, 1000 lbs for semi-full drum
• Allows the operator to lift, transport, tilt and dump drums without having to leave their seat
• Gear concept with traction chain
• Drum can rotate 360° using chain
• Forks of the carriage slide easily in the sides of the lifter which is held by two wing nuts
• No electrical or hydraulic connection required
• 6-1/2" W x 26-5/8" D x 2-1/2" H fork pockets; inside width between forks must be 25"
• 22-1/2" diameter
• Options available to handle plastic and fiber drums
• Unit weight of 273 lbs

Model # KE-310

• 2000 lbs capacity for full drum, 1000 lbs for semi-full drum
• Allows the operator to lift, transport, tilt and dump drums without having to leave their seat
• Gear concept with traction chain
• Drum can rotate 360° using chain
• Forks of the carriage slide easily in the sides of the lifter which is held by two wing nuts
• No electrical or hydraulic connection required
• 6-1/2" W x 26-5/8" D x 2-1/2" H fork pockets; inside width between forks must be 25"
• 22-1/2" diameter
• Options available to handle plastic and fiber drums
• Unit weight of 273 lbs
